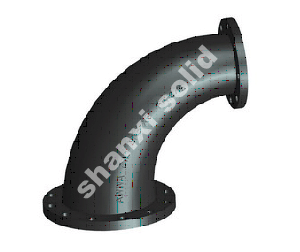

Curvas de radio largo brida doble reducción 双法兰渐缩长半径弯头

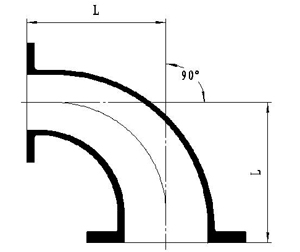

DN (in.)	dn (in.)	T (in.)	T1 (in.)	L (in.)	r (in.)	Weight (lb)
3	2	0.48	0.31	7.75	6.25	20
4	2	0.52	0.31	9	7.00	35
4	3	0.52	0.48	9	7.00	38
6	3	0.55	0.48	11.5	9.50	55
6	4	0.55	0.52	11.5	9.50	70
8	4	0.60	0.52	14	12.00	100
8	6	0.60	0.55	14	12.00	120
10	4	0.68	0.52	16.5	14.50	145
10	6	0.68	0.55	16.5	14.50	170
10	8	0.68	0.60	16.5	14.50	195
12	6	0.75	0.55	19	17.00	225
12	8	0.75	0.60	19	17.00	260
12	10	0.75	0.68	19	17.00	300
14	8	0.82	0.60	21.5	19.00	330
14	10	0.82	0.68	21.5	19.00	375
14	12	0.82	0.75	21.5	19.00	425
16	8	0.89	0.60	24	21.50	420
16	10	0.89	0.68	24	21.50	480
16	12	0.89	0.75	24	21.50	530
16	14	0.89	0.82	24	21.50	590
18	10	0.96	0.68	26.5	24.00	570
18	12	0.96	0.75	26.5	24.00	635
18	14	0.96	0.82	26.5	24.00	685
18	16	0.96	0.89	26.5	24.00	775
20	12	1.03	0.75	29	26.50	755
20	14	1.03	0.82	29	26.50	820
20	16	1.03	0.89	29	26.50	915
20	18	1.03	0.96	29	26.50	980
24	12	1.16	0.75	34	30..5	1060
24	14	1.16	0.82	34	30..5	1130
24	16	1.16	0.89	34	30..5	1245
24	18	1.16	0.96	34	30..5	1325
24	20	1.16	1.03	34	30..5	1430
